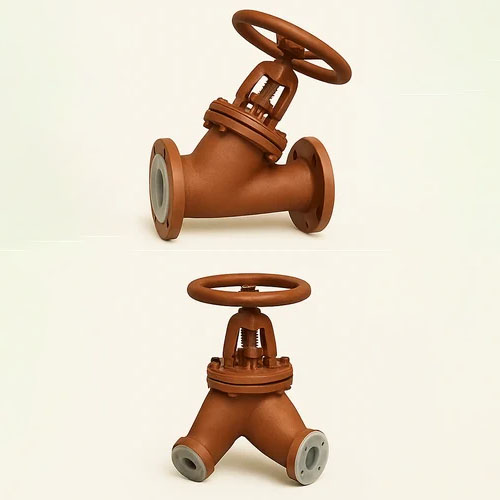

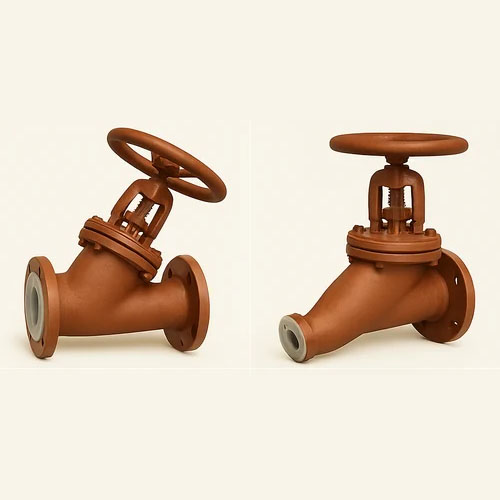

PTFE Lined Y - Type Globe Valve

Salient Features:

• ”Allines” Y – Type Globe Valve have advanced dynamic flow path and angle of body is 45° - 55° to ensure minimum pressure loss.

• Corrosion resistance PTFE Lining is made in various size as per customer requirement.

• Regulating Plug design with 1 pc. PTFE Lined which is used for Regulate the flow in pipe line.

• Optional Plug type Disc available on request.

• Able to be installed in either a horizontal or vertical position

• “Y” – Type Globe valve suitable for corrosion resistant all types of fluids.

• “Allines” name is synonymous with quality.

Technical Data

• Meet Mfg. & Design Standard: BS 5152 / ANSI B 16.34

• Size Range : 1”NB to 6”NB

• Size Range : 8”NB & 10”NB under development.

• Pressure Range : 0 to 6 Bar

• Temperature Range : -60°C to +200°C

• Body Material : S.G. Iron (NOD CI) / WCB / CF8 / CF8M / CD4MCu

• Lining Material : FEP / PFA / PVDF / Antistatic PFA Lining

• Spark Test : 100% Inspected at 15 KVA

Applications

• Industrial Inorganic Chemicals

• Industrial Organic Chemicals

• Plant protective agent production

• Alkali’s & Chlorine

• Detergent production

• Water treatment

• Bromine Production

• Sulfur recovery

• Food Processing

• Nitrogenous & Phosphorus Fertilizers

• Pharmaceutical Preparation

• Sugar Industries

• Petroleum Refining.
