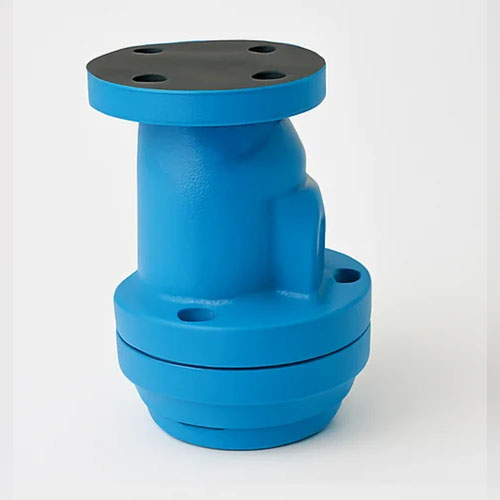

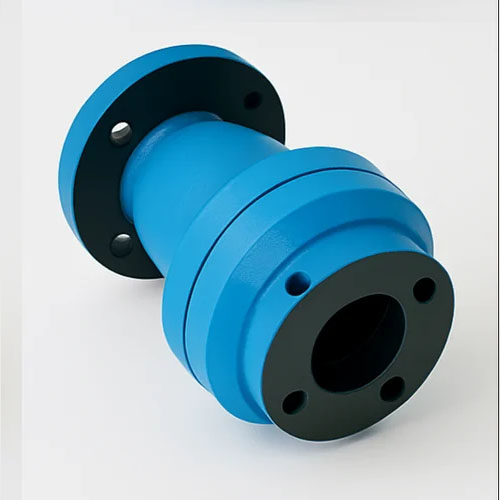

CI Rubber Lined Flap Check Valve

Salient Features:

• “Allines” Rubber lined Flap Check Valve have advanced dynamic flow path and low pressure drop.

• Corrosion resistance HRL (Ebonite) / Butyle / Non – Butyle / EPDM / Hypalone / Neoprene / NBR Rubber Lining is made in various size as per customer requirement.

• 1 pc. Rubber Lined moulded Flap (Disc) Design.

• Able to be installed only in vertical position.

• Flap Check valve suitable for corrosion resistant all types of fluids.

• “Allines” name is synonymous with quality.

Technical Data:

• Meet Mfg. & Design Standard: Mfg. Std. / ANSI B 16.34

• Size Range : 1”NB to 12”NB

• Pressure Range : 0 to 6 Bar

• Temperature Range : -60°C to +200°C

• Body Material : S.G. Iron (NOD CI) / WCB / CF8 / CF8M / CD4MCu

• Lining Material : HRL (Ebonite) / Butyl / Non – Butyl / EPDM / Hypalone / Neoprene / NBR

• Spark Test : Thick liner 100% Inspected at 15 KVA

Applications:

• Compressed Air Plants

• Chemical Industries

• Sugar Industries

• Drilling Rings

• Gases & Vapor Plants

• Pharmaceutical Plants

• Milk & Food Industries

• Aggressive Chemicals

• Refrigeration & Air-conditioning Plants

• High Vacuum Application

• Cooling Water Circulation

• Water treatment Plants

• Desulphurization Plants
