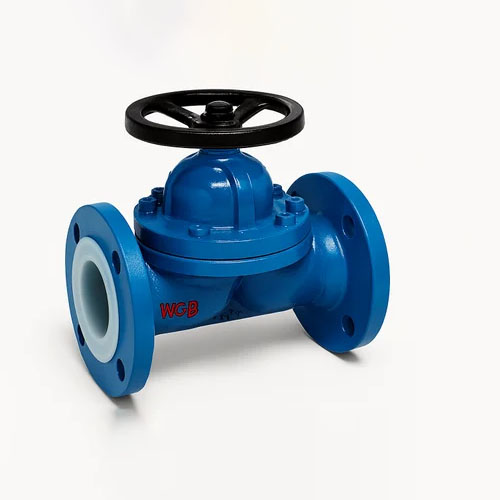

Rubber Lined Straight Type Diaphragm Valve
Rubber Lined Straight Type Diaphragm Valve
| Business Type | Manufacturer & Exporter |
|---|---|
| Country of Origin | India |
| Size | Different sizes available |
| Preferred Buyer From Location | Worldwide |
| Packing Type | Export Standard Packing or as required. |
| Delivery Time | As required |
Salient Features:
- Meet design specification as per BS 5156 / B 16.34 / Flange dimensions as per B 16.5
- Testing Standard as per BS - EN 12266 - 1 / DIN – EN - 588 – 1
- Lining Standard as per IS 4682 (Part-1): 1994
- The Weir type top entry Diaphragm valves provide tight shut-off with comparatively low operating force.
- A simple and reliable weir design valve is better throttling flow or block flow at valve fully open it offers a self cleaning design. It is the best choice for dirty, contaminated and powder media. Specifically suited to handle erosive and abrasive application
- When require to the replacement of the Diaphragm, the bolted bonnet design permits the dismantling of the valve without removing the valve body from the pipe joint.
- Convection Isolating valve would require expensive exotic materials to resist the effects of sever corrosion.
- High permeation resistance lining.
- Soft – sealing, gas tight shut – off.
- Vacuum proof anchored.
- Hermetic – Gland less sealing against the valve bonnet.
- The quality and functionally of the diaphragm are crucial for greater Fatigue strength underreversed bending stresses and dimensional stability even after many switching cycles and atfluctuating temperatures.
- Higher density and lower permeability.
- Travel position indicator gives clear and positive from any angle. • Exclusive sealing bead design prevents best seal and reducing thermal stresses on the sealingsurface.
- cavity free, poke less design ensures unrestricted flow and low pressure drop.
- Tecahnical Data:
- Size Range : 1”NB to 10”NB
- Pressure Range : 0 to 6 Bar
- Temperature Range : 60 °C to +180 °C
- Vacuum Resistance : Full (Vacuum up to 10 Bar)
- Tightness : BS-EN-12266-1
- Leakage rate : D, Test Media: water • Leakage Class : as per Class VI shut off.
- Body Material : S.G. Iron (NOD CI) / WCB / CF8 / CF8M / CD4MCu + Rubber Lined
- Lining Material : HRL (Ebonite) / Butyl / Non – Butyl / EPDM / Hypalone / Neoprene / NBR
- Spark Test : Thick liner 100% Inspected at 15 KVA
