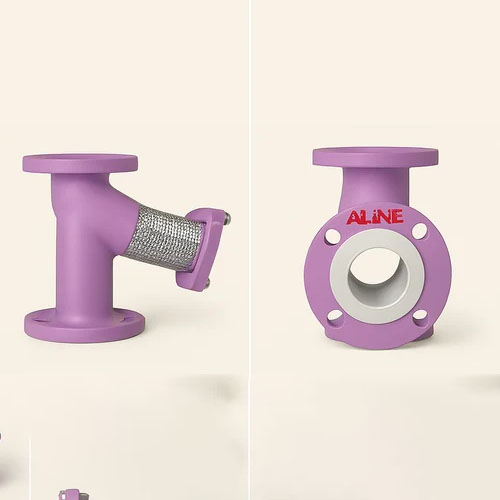

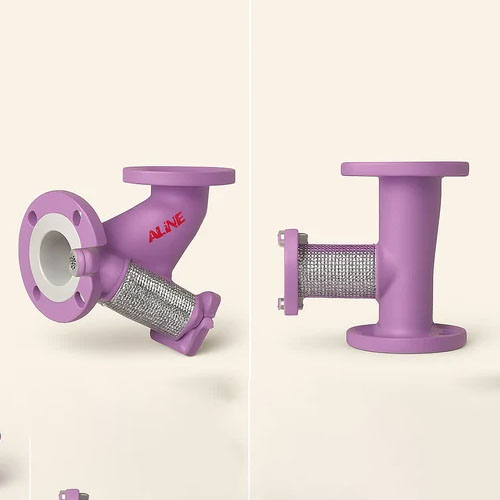

PTFE Lined Y Strainer

Salient Features

• ”ALLINES” Y – Type Strainer have advanced dynamic flow path and large filtration area elements to ensure low pressure loss.

• Corrosion resistance PTFE Filter element made in various mesh size as per customer requirement.

• Low pressure drop due to high area through screen.

• The filter insert can be changed or easily cleaned without removing the filter from the line.

• A Blow down Drain Plug made in solid PTFE rod. PTFE Drain Plug removing the access flange when changing or cleaning the filter.

• Optional Ball Valve may be specified in place of the PTFE Drain Plug.

• Able to be installed in either a horizontal or vertical position

• “Y” – Type Strainer suitable for corrosion resistant all types of fluids.

• “Y” – Type Strainer is being used for the removal of foreign particles in pipe line.

• “Y” – Type Strainers improves the clearance in the medium and prolongs the life of valves, protect expensive pump, meters and other equipments.

• “ALLINES” also manufacturing & Exporting of PTFE Lined “Y” Type, Tee – Type, Basket Type Strainers on request. The “ALLINES” name is synonymous with quality.

Technical Data

• Size Range : 1”NB to 12”NB

• Pressure Range : 0 to 6 Bar

• Temperature Range : -60°C to +200°C

• Body Material : S.G. Iron (NOD CI) / WCB / CF8 / CF8M / CD4MCu + Lined

• Lining Material : FEP / PFA / PVDF / Ceramic / Antistatic PFA Lining

• Spark Test : 100% Inspected at 15 KVA

Applications

• Industrial Inorganic Chemicals

• Industrial Organic Chemicals

• Plant protective agent production

• Alkali’s & Chlorine

• Detergent production

• Water treatment

• Bromine Production

• Sulfur recovery

• Nitrogenous & Phosphorus Fertilizers

• Food Processing

• Pharmaceutical Preparation

• Sugar Industries

• Petroleum Refining
