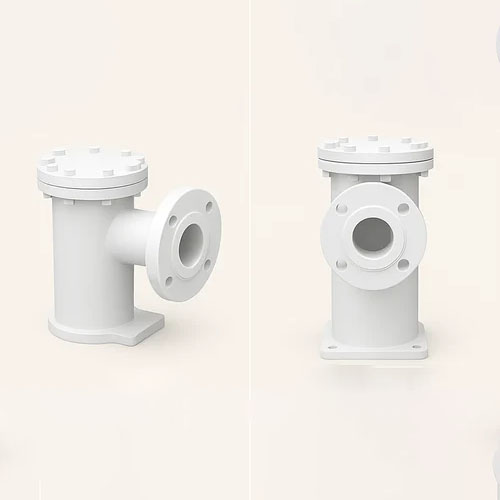

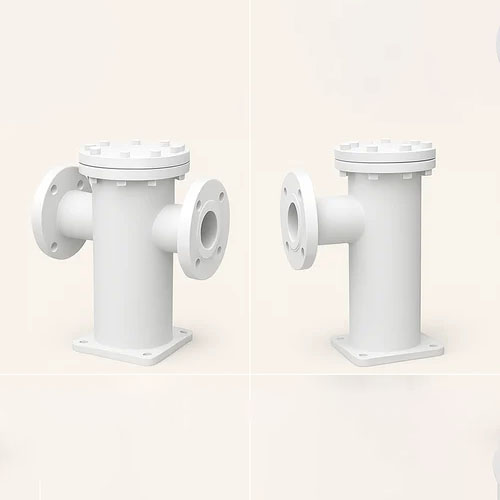

PTFE Solid Tee Type Strainer

Salient Features:

• Strainers are especially well suited for use in removing spended solids from extremely corrosive or high-purity fluid streams. They help prevent damage to sensitive  down stream process components such as pumps, valves, instruments, and spray nozzles. The benefits of our special design include:

• All fluoroplastic construction that provides far greater corrosion resistance and higher operating temperature capability than PVC, CPVC, or polypropylene units.

• Available with a variety of end connections and screen mesh sizes.

• Both PTFE and PVDF strainers feature a removable, and easily cleaned PTFE cartridge with fluoropolymer screen.

• Teflon® FEP encapsulated silicone rubber "o"-ring seal combined with machined seat on cartridge prevents blow-by

• Bolted / Knurled  cap for easy strainer cartridge removal and clean-out.

• “ALLINES” also manufacturing & Exporting of PTFE Y – Type, Basket Type Strainers on request. The “ALLINES” name is synonymous with quality.

Chemical Resistance:

• ETFE: At ambient temperatures, same as PTFE. Consult factory for higher temperatures.

• PEEK: At ambient temperatures, compatible with almost all chemicals. Consult factory for further details including higher temperatures. Non-standard options.

• Additional mesh sizes: On special order, other ETFE and PEEK mesh sizes are available.

• Other screen materials: Woven mesh, perforated, and porous membrane screens are available in a variety of other materials and sizes (e.g., PTFE, Hastelloy, Alloy 20, Monel, Tantalum).

• T – Type Strainer Size Range: 1” NB to 4” NB

• End Connection: Socket Weld / Screwed / Flanged (150#)
